Description:
The VSD8210A series trail camera (also called game camera/trail camera) is a scouting device. It can be triggered by sudden change of ambient temperature caused by moving game in a region of interest, which is detected by a highly sensitive Passive Infra-Red (PIR) sensor,and then take pictures or video clips automatically.
The VSD8210A is different with LTL-5210A ,it has the Audio record function ,and come with Laser light ,Laser light makes the camera focus to the optimal point.

Each photo can optionally be stamped with the date, time, temperature, moon status.
Day photo: example 1; example 2
Night photo: example 1

Large TFT-LCD screen for playback of photos & Video. Cameras can take photos and video day and night, and also has unique time-lapse setting option which is not found on other trail cameras - see the wood or field throughout the day, watch how animals move and plants grow.
````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````
Features:
12 Mega Pixels CMOS sensor.
Sharp and bright color pictures in daytime and clear black/white pictures at night
Ultra low standby power consumption .Extremely long in- field life(in standby mode ,up to 1 months with 4 x AA batteries and 2 Months with 8 x AA batteries)
Unique side Prep Sensor design provides wider sensing angle and enhances camera's response speed
Perform in the most extreme temperatures from -22¡ãF to 158¡ãF
Compact size. Well designed to deploy covertly
Impressively quick trigger time (1 second)

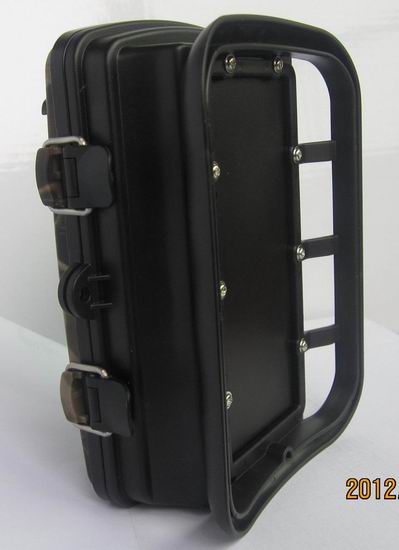

Backpack-looking tree grabber makes mounting and aiming a snap
Date ,time can be stamped in the pictures
Lockable and password protected

Spec
Model |
Parameters |
Image Sensor |
12Mega Pixels color CMOS |
Max. Pixel Size |
3000*4000 |
Lens |
F=3.1;OFV=52¡ã;Auto IR-Cut |
IR Flash |
65 Feet/20 Meters |
LCD Screen |
2.5 inch |
Operation Keypad |
7 Keys |
Picture Size |
3000*4000 12M ;3264*2448 8M ;2592*1944 5M |
Memory |
32M , SD card (32M to 32G) |
Lase light |
Laser light makes the camera focus to the shotting range .Just put Magnet Key on front of camera |
Video Size |
HD 1280*720 20fps
D1 720*480 20fps
640 640*480 20fps
320 320*240 20fps |
PIR Sensing Distance |
15M |
Prep PIR Sensing Angle |
Left and right light beams form an angle of 90¡ã; |
Main PIR sensing Angle |
35¡ã |
Trigger Time |
1 Second |
Time lapse |
1 sec 23H59M59S ;Programmable |
Delay time |
1 sec 23H59M59S ;Programmable |
IR-LED mode |
Day/Night/24H |
Capture Mode |
Single
Camera +video
3 pictures
5 pictures |
Video time |
15 sec
30 sec
60 sec
120 sec |
Timer |
ON/OFF ; Timer set |
Serial NO. |
4 Digit NO. and 26 alphabets |
Playback Zoom In |
1-16 Times |
Password |
4 Digit NO. and 26 alphabets |
Power Supply |

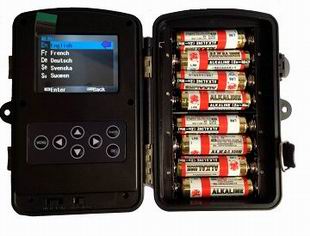

4*AA; Expandable to 8*AA(With additional battery box) |
Stand-By Time |
4-8 Months(4*AA - 8*AA) |
Stand-by Current |
0.2mA |
Auto Power off |
2 minutes while no keypad controlling |
Power Consumption |
160mA(+500mA when IR LED lights up) |
Low Battery Alarm |
4.3v |
Interface |
TV out ; USB; SD card slot; 6V DC External |
Waterproof |
IP 54 |
Operation Temperature |
-20 to +158¡ãF /-30 to +70¡ãC |
Operation Humidity |
5% -- 95% |
Description
Outdoor Infrared Trail Camera For Trapping Animal is a scouting device. It can be triggered by sudden change of ambient temperature caused by moving game in a region of interest (ROI), which is detected by a highly sensitive Passive Infra-Red (PIR) sensor, and then take pictures or video clips automatically.
Application:
*Trail camera for hunting and animal or event observation
*Motion-triggered security camera: Farm,forestry,home,office and community security monitoring
*All other indoor/outdoor surveillance where invasion evidence is needed

|
