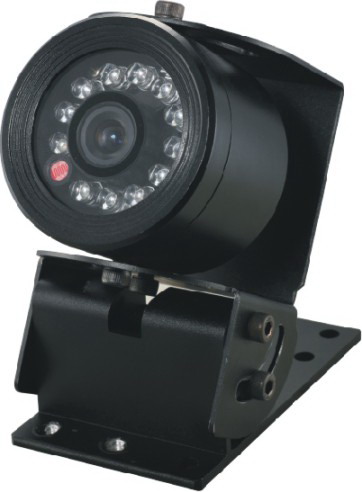

MODEL

VSC732

Image Sensor

1/3" Sony Color CCD

1/4” Sony Color CCD

1/3" Sharp Color CCD

1/4" Sharp Color CCD

Horizontal Resolution

420TVL

Signal System

PAL/NTSC

Picture Pixels

PAL: 500(H) X 582(V), NTSC: 510(H) X 492(V)

LED No.

12PCS Φ5

Ranging Distance

10-15m

Infrared Wavelength

850nm

Sync System

Internal Synchronization

S/N Ratio

>48dB

Lens

3.6/6mm

Electronic Shutter

PAL: 1/50 -1/100,000 Sec, NTSC: 1/60 -1/100,000 Sec

Gamma Collection

r=0.45

White Balance

AUTO

BLC

AUTO

AGC

AUTO

Minimum Illumination

0Lux (IR ON)

Video Output

1.0Vp-p, 75Ω

Power Supply

DC12V +/- 20%

Operation Temperature

-10℃~+50℃

Dimension

54mm x54mm x108mm
