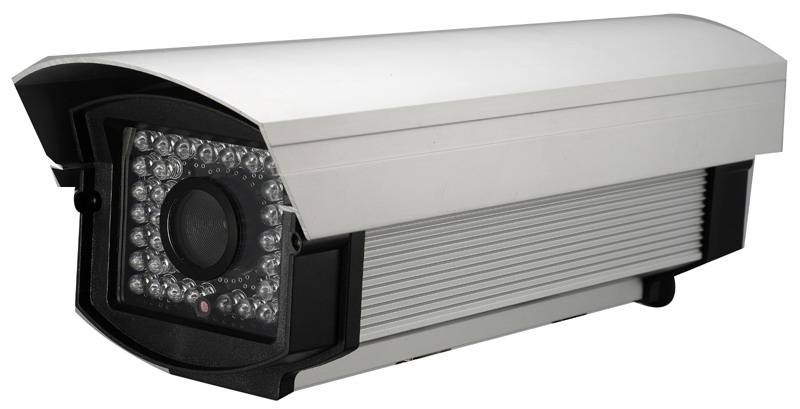

VSC759
CCD Waterproof Camera
◆Min.lllumination:0Lux/F1.2
◆LED Light:36PCS Φ8
◆IR Series Distance:50-60m
◆White Balance:Auto
◆Backlight Compensation:Auto
◆Scanning System:PAL/NTSC
◆Adapter:AC110-240V
◆Design patented,all right reserved
Product Specification:
MODEL |
VSC759 |
Image Sensor |
1/3" Sony Color CCD |
1/4” Sony Color CCD |
1/3" Sharp Color CCD |
1/4" Sharp Color CCD |
1/3” sony HQ1 Color CCD |
Horizontal Resolution |
480TVL |
420TVL |
420TVL |
420TVL |
560TVL |
Signal System |
PAL/NTSC |
Picture Pixels |
PAL: 500(H) X 582(V), NTSC: 510(H) X 492(V) |
LED No. |
36PCS Φ8 |
Ranging Distance |
50-60m |
Infrared Wavelength |
850nm |
Sync System |
Internal Synchronization |
S/N Ratio |
>48dB |
Lens |
4/6/8/12mm |
Electronic Shutter |
PAL: 1/50 -1/100,000 Sec, NTSC: 1/60 -1/100,000 Sec |
Gamma Collection |
r=0.45 |
White Balance |
AUTO |
BLC |
AUTO |
AGC |
AUTO |
Minimum Illumination |
0Lux (IR ON) |
Video Output |
1.0Vp-p, 75Ω |
Power Supply |
AC110-240V |
Operation Temperature |
-10℃~+50℃ |
Dimension |
115mm x123mm x380mm |
|
