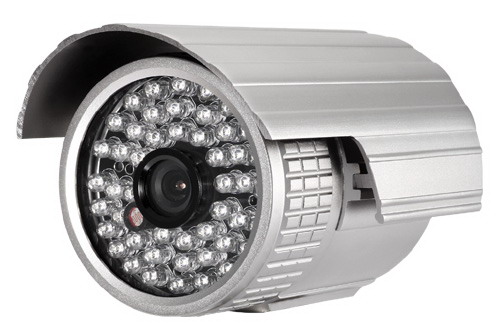

CCTV Camera

VSC771

CCD Waterproof Camera

Min.lllumination:0Lux/F1.2
LED Light:48PCS 5
IR Series Distance:45-50m
White Balance:Auto
Backlight Compensation:Auto
Scanning System:PAL/NTSC
Adapter:DC12V
Design patented,all right reserved

 Product Specification:

MODEL

VSC771

Image Sensor

1/3" Sony Color CCD

1/4 Sony Color CCD

1/3" Sharp Color CCD

1/4" Sharp Color CCD

1/3 sony HQ1 Color CCD

Horizontal Resolution

420TVL



560TVL

Signal System

PAL/NTSC

Picture Pixels

PAL: 500(H) X 582(V), NTSC: 510(H) X 492(V)

LED No.

48PCS 5

Ranging Distance

45-50m

Infrared Wavelength

850nm

Sync System

Internal Synchronization

S/N Ratio

>48dB

Lens

4/6/8/12/16mm

Electronic Shutter

PAL: 1/50 -1/100,000 Sec, NTSC: 1/60 -1/100,000 Sec

Gamma Collection

r=0.45

White Balance

AUTO

BLC

AUTO

AGC

AUTO

Minimum Illumination

0Lux (IR ON)

Video Output

1.0Vp-p, 75

Power Supply

DC12V +/- 20%

Operation Temperature

-10~+50

Dimension

76mm x83mm x122mm
