VSD2CH-32SD

VSD2CH-16SD User Manual

VSD2CH-32SD Video Clip 1

2CH HD Mini DVR, HD Mini DVR, 2CH Mini DVR Working At The Same Time, 2ch mobile dvr, 2ch mobile dvr, 2CH HD Mobile DVR, HD DVR PIP Function, 2CH Motion Detect SD Recorder, DVR HD, 2ch HD mini dvr + support 32g sd card, Car DVR, Vehicle DVR, Mobile Mini DVR, 2CH Mobile Mini DVR, China 2CH MINI DVR, China Mini DVR, HD 2CH DVR, Wholesale HD 2CH Mini DVR, Wholesale Cheap 2CH HD Vehicle Mini DVR, Motion Detection 2CH Mini DVR, Motion Detection DVR, Mini DVR Motion, D1 Mini DVR, PIP 2CH HD Mini DVR, 2CH Mini Camera DVR, Digital Video Recorder Box

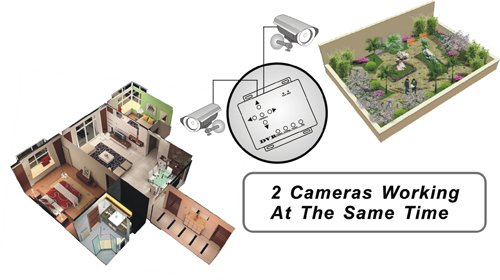

2CH Working At The Same Time
Record 1CH Video & 1CH Photo
Motion detection Trigger Recording
Support Up To 32GB
720*576 30fps D1 Video and Picture
Picture-in-Picture (PIP) real time
Overwrite Auto When Memory Full
All Video With Audio
Connect PC To Playback By USB
2CH Video I&O, 1CH Audio I/O (RCA)

VSD2CH-32SD 2CH HD Mini DVR, HD Mini DVR, 2CH Mini DVR Working At The Same Time, 2ch mobile dvr

VSD2CH-32SD 2CH HD Mini DVR, HD Mini DVR, 2CH Mini DVR Working At The Same Time, 2ch mobile dvr

--------------------------------------------------------------------

 Decription:

1. D1/QVGA video resolution selectable

2. Video at D1 resolution: 720X576, QVGA resolution 360X288

3. Pictures at D1 resolution: 720X576,

4. 1 camera recording frame: Pal 25f/s. NTSC 30f/s.

5. 2 cameras recording frame 15f/s, another camera is for snapshot

6. 32GB SD/SDHC memory supported

7. Motion detection supported

8. 5s/10s per video clip when motion detected

9. Continuously recording by manually operate

10. Picture-in-Picture (PIP) real time viewing

11. Overwrite automatically when memory full

12. Connect with PC to playback by USB cable



VSD2CH-32SD 2CH HD Mini DVR, HD Mini DVR, 2CH Mini DVR Working At The Same Time, 2ch mobile dvr

VSD2CH-32SD 2CH HD Mini DVR, HD Mini DVR, 2CH Mini DVR Working At The Same Time, 2ch mobile dvr

VSD2CH-32SD 2CH HD Mini DVR, HD Mini DVR, 2CH Mini DVR Working At The Same Time, 2ch mobile dvr

`````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````

 Features:



Item

Parameter

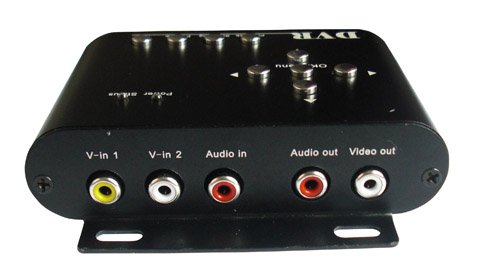

AV Input

3RCA input (2 video+1 audio)

Av output

2RCA output (1video+1 audio)

Frame

Pal:25f/s, NTSC:30f/s

Resolution

D1:720X576

QVGA:720X480

Compression

M-JEPG & Standard JPEG

Detect mode

Motion detection

Recording mode

Video recording & take photos

Memory

SD/SDHC Card,32GB

USB jack

USB 2.0

Power

DC12V  (5V-36V made by order)

Working electricity

250mA

Working Temperature

-10~+50C

Operation Humidity

20%~85%

DVR Weight

160g

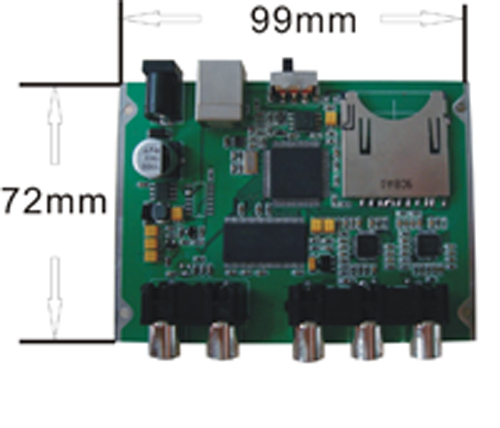

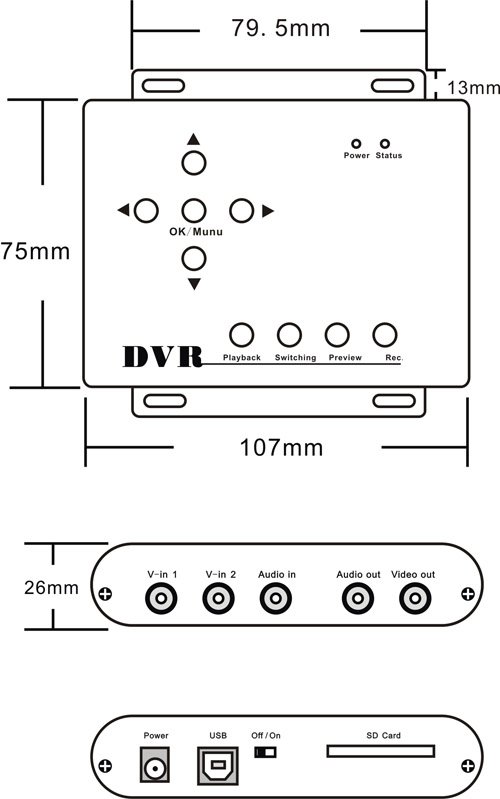

DVR Dimension

101X105X26 (LxWxH)



 Application:


1.Smart Home, Office, Household, Hotel, Safety & Security Center, Warehouse, Home Monitoring, Offices, Restaurants, Parking lots, Warehouses and shop/store security using
2.Police, Cop, Control Centre, Bank, Stock Exchange Centre, Prison
3.Car School Beginner, Car DVR Kit, Bus, Vehicle, Truck, Taxi, Individual Cars
4.Black Box For any military using, Help catch criminals
5.Supermarket, Entertainment Centre, Flat, Garden, Store, Small Super Market
6.Potential Civil Security and Surveillance Market

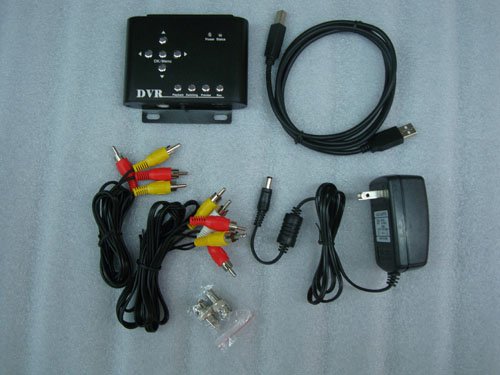

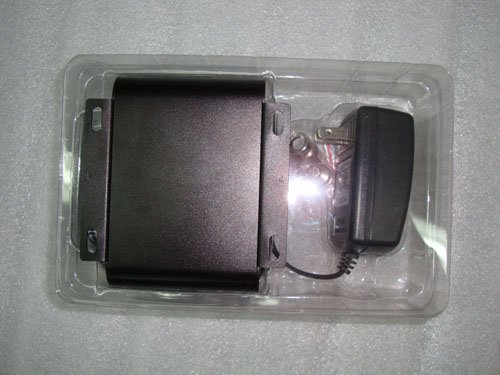

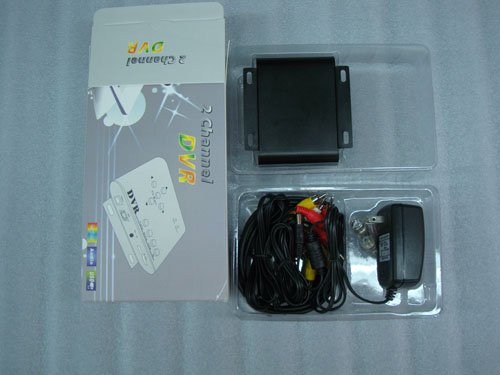

 Package:
