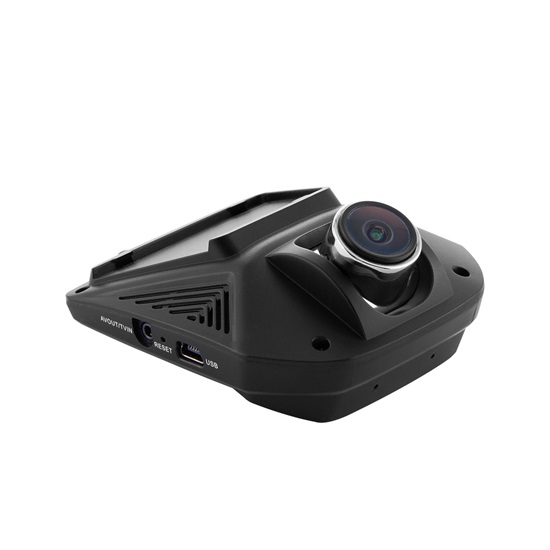

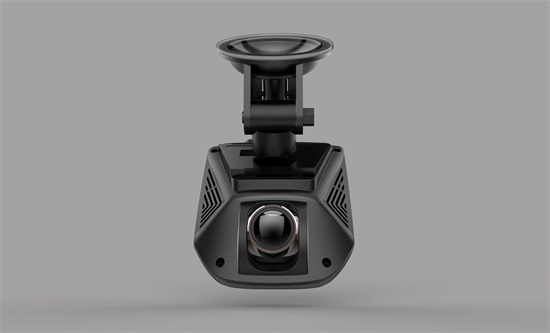

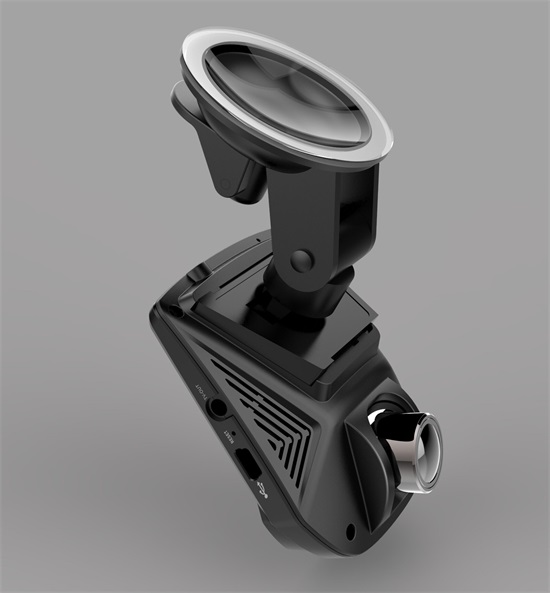

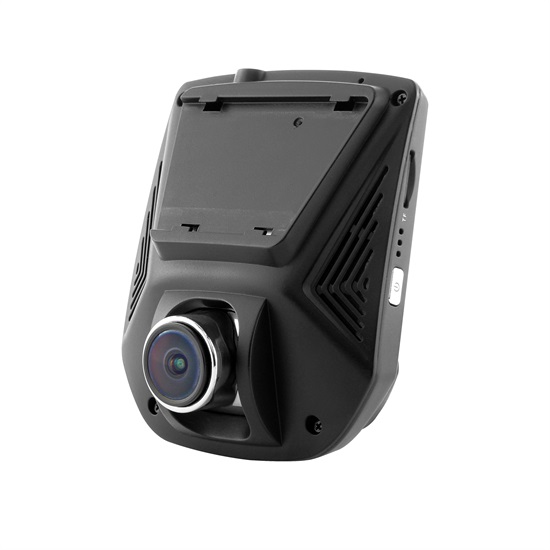

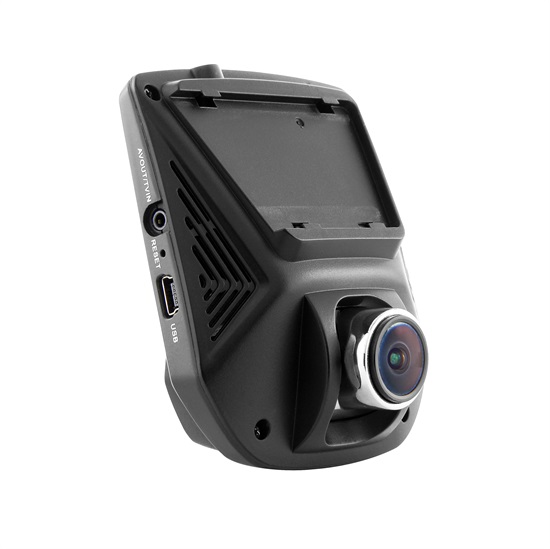

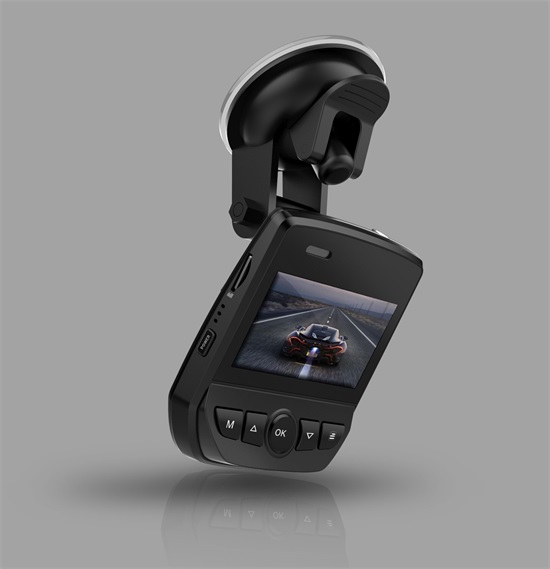

WiFi Dashboard Cam Hidden Installation 170° Wide Angle

VSD503A

WiFi Dashboard Cam Hidden Installation 170° Wide Angle

NT96658 SONY Sensor IMX323 With Parking Mode 24H

To order from our factory, Contact Us Email: sales@videsur-electronic.com

SKYPE: videsur

VSD503A Video Clip



Hidden Installation WIFI Dashboard Camera for all cars, Non-destructive Installation Designed for the original car style,car camera Hidden Installation DVR Camera WIFI APP HD 1080P,Hidden dash cams offer a discreet way of having video protection installed in your car, 170° 1080P WiFi Hidden Car DVR Dash Camera Recorder, Full Hd 1080P Wifi Hidden Car Dash Camera Dvr Recorder,




 Decription:

Quick WIFI connection with any mobile device which supports Android or ISO(Apple) application. Via the mobile phone or Pad in your hand, check the real-time images and videos detected by the car dash cam.

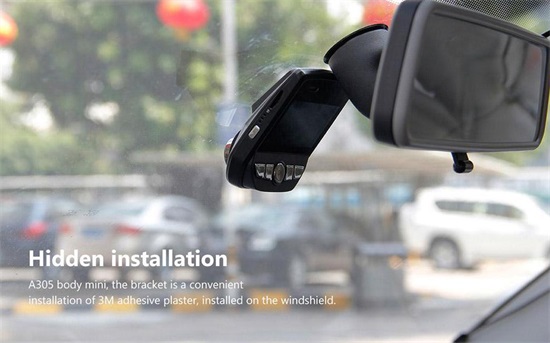

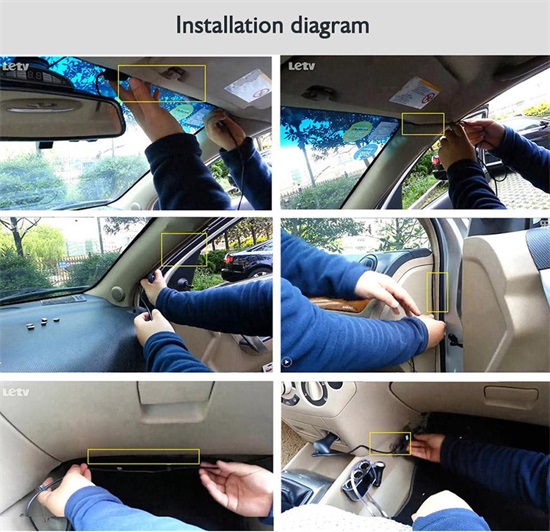

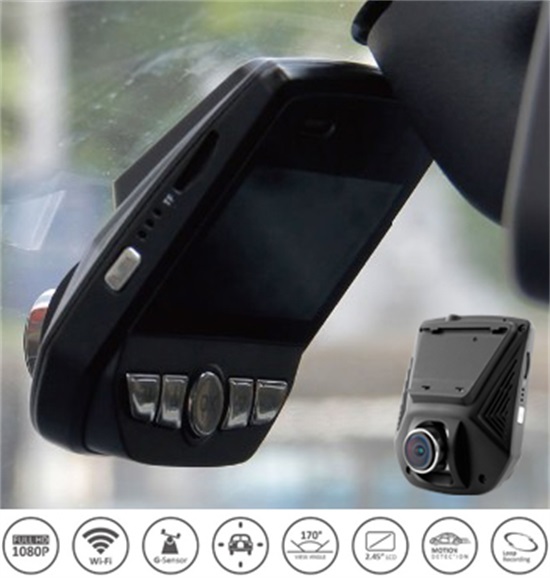

Hidden installation, the camera mounts to the windshield, staying concealed from outside the car.

ACCIDENT AUTO DETECTION FEATURE (G-SENSOR) will automatically lock and save any video file that was recorded when the camera detected abrupt displacement or drastic change of position.

Seamless Recording in continuous loop: The camera will record these files one by one onto the SD card until it runs out of space. When space on the SD card runs out, the camera will start from the first files recorded, and delete the files from oldest to newest, one by one.














 Features:

Hidden Installation on windshield
WIFI Functioncan control by smart phone
1080P FULL HD high quality resolution.
Novatek 96658 chipset, Sony IMX323 sensor
170 degree A+ grade high-resolution wide angle lens
Advanced H.264 photography compression technology

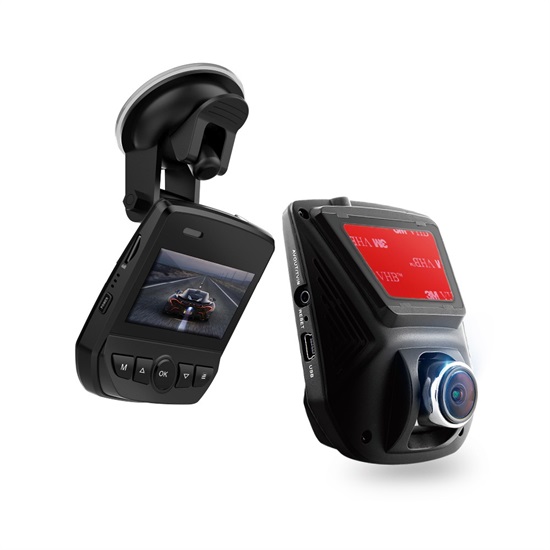

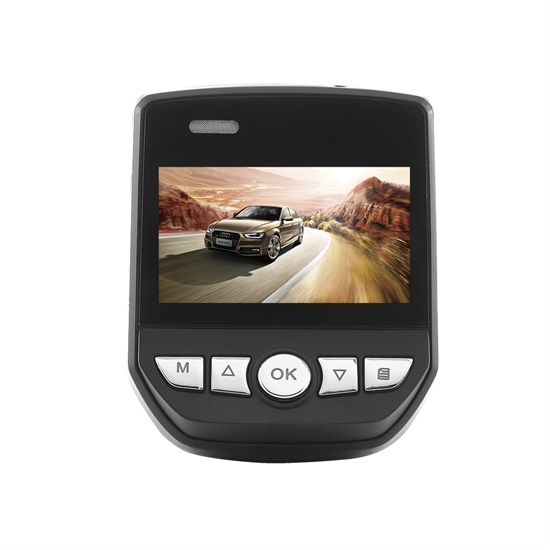

2.45 inch high resolution LCD, can watch while shooting.
4X digital zoom
Automatically turn on/off function
Support HDMI full HD video transmission
Support TF memory card, up to 32GB
Seamless loop-cycle recording function
Motion detection function
G-sensor function
 Specification:



General

Chipset:Novatek 96658

Sensor:Sony IMX323

Color:Black

Lens Angle:170 degree wide angle lens

Functions

Decode Format:H.264

Video Resolution:1080FHD(1920*1080) /720P(1280*720) /WVGA(848*480) /VGA(640*480)

Video Format:MOV

Photo Resolution:12M/10M/8M/5M/3M/2M/1.3M/VGA

Photo Format:JPG

G-Sensor:YES

Screen Resolution:960*240

WDR:YES

ISO:Auto/100/200/400

Loop-cycle recording :Off/3min/5min/10min

Auto OFF:Off/1min/2min/3min

White balance:Auto/Daylight/Cloudy /Tungsten / Fluorescent

Exposure:-2.0,-5/3,-4/3,-1.0,-2/3,-1/3,+0.0,+1/3,+2/3,+1.0,+4/3s,+5/3,+2.0

Frequency:50HZ/60HZ

APP:Lerccenker(APP,IOS/Android)

Language:English/French/Espanol/Portuguese/
Deutsch/Italian/Simplified Chinese/ Traditional Chinese/ Russian/Japanese

Motion Detection:YES

Microphone:YES

Screen saver:OFF/1min/3min/5min

Storage Expansion:TF Card up to 32GB

Power interface:5V 1.5A

Battery:Lithium battery 180mAh

Product weight:75g

Package weight:320g

Product size(LxWxH):9.0*7.0*4.5cm

Package size(LxWxH):17.5*13.5*8.5cm

Package Contents

1 x VSD503A?CAR DVR Recorder
1 x Car Charger
1 x 3M Sticker
1 x USB Cable
1 x User Manual


 Application:

Home, Office, Supermarket, Bank, Park, Factory, School, Hotel, Garden, Shop, Outdoor.

Best uses: teenage driving behavior, transportation companies, accident evidence and more
 Package:



1 x VSD503A CAR DVR Recorder
1 x Car Charger
1 x 3M Sticker
1 x USB Cable
1 x User Manual
