VSDP23AU-D1 736*576

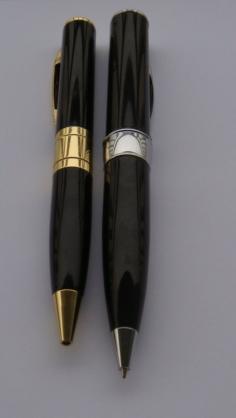

Latest Mini Pen DVR D1 Quality

Video Clip With Date/Time Stamp (30fps latest version)

 Product Specification:


 °ÔUnique design,the diameter of the pen is only 13MM
 °ÔPen with Video Camera,photograph and PC-CAM
 °Ôfunctions,three-in-one design
 °ÔHigh-definition audio and video recording
 °ÔVideo resolution can up to 736*576 D1 Quality
 °ÔImage resolution can up to 1280*960
 °ÔAPlug and play PC-Cam Function
 °ÔBuilt-in high-performance rechargeable lithium battery
 °Ôinternal memory is 1-8GB, and support 1-8GB TF card inserted ,the maximum capacity  can up to 16GB

Technical parameters

Item

VSDP23AU-D1

Specification

Image Sensor

inch

1/4 COMS

Physical Pixel Array

pixels

1.3million

Lens Mount

mm

2.8

View Angle

degree

67

Video Compression

Recording Format

MJPEG

Video Resolution

pixels

736*576 AVI

Recording Frame

fps

30

Photograph Resolution

pixels

1280*960

Battery capacity

mAh

150

Charging time of battery

hour

1

Working Voltage

V

3.7

Charging Voltage

V

4.2-5

Operation Temperature

°ś/°„F

25-40

Storage Temperature

°ś/°„F

<50>-10

Operation Humidity

RH

<70

Size

mm

13°Ń140mm





°°
