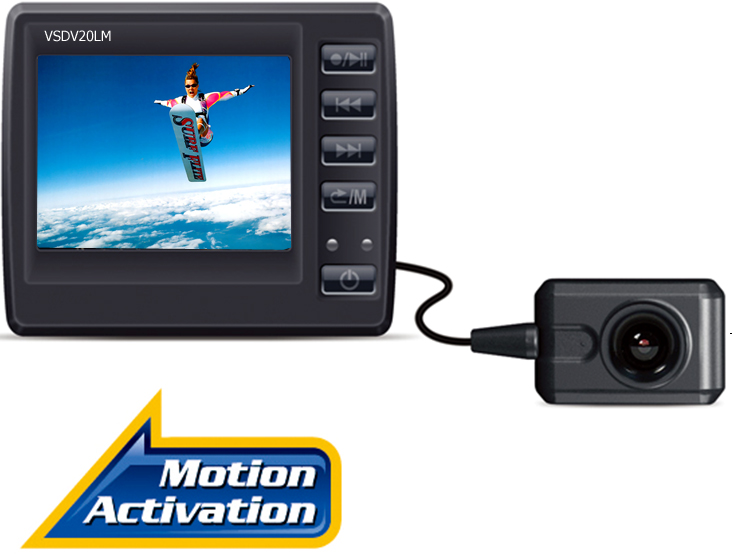

VSDV20LM

Mini DVR With Motion Activation New Version

720x528 Video Recording High Definition

Support 32GB Micro-SD Card

Frame Rate: 30fps/25fps

Description:


2.0 TFT LCD Screen With 960240 Resolution
Motion-activated Recording function.(20 seconds recording in advance when Motion Detection starts).
Directly Connect and Power an external camera
Built-in 125M Flash Memory, which could support extra SD card up to 32G;
Cyclic recording;(Automatically delete the previous data when the storage is full)
AV in/out via RCA cable
Time/Date stamp on each recording
Records directly to removable SD card
SD card slot accommodates up to 16G Mini SD card
MPEG4 Video Encoding
USB 2.0 High Speed Interface
Interchangeable standard mobile Li-ion Battery
Main unit size: 6755 15mm
Interchangeable 900mAh li-ion Battery,

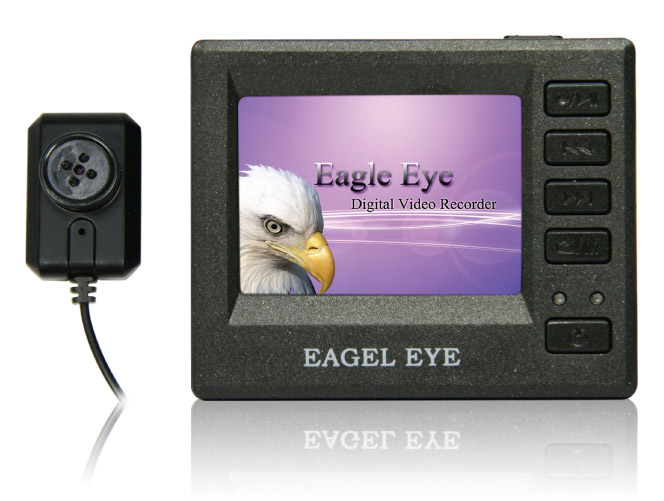

Mini Camera


Imaging Sensor: 1/3 -inch CMOS
CMOS Total Pixels: 628582 (PAL) / 510492 (NTSC)
Horizontal Resolution: TV Lines 420
View Angel: Degree (o) :62
Minimum Illumination: 1.5Lux / F1.5
Minimum illumination: 3LUX
Dimensions ( WLH) : 34 2215 mm
