VSPV912LM CCD Camera CD520 Specifications |
Imaging sensor type: |
1/3" SONY color CCD |
TV System: |
PAL / NTSC |
Horizontal Definition: |
480 TV lines |
Minimum Illumination: |
1.0 LUX |
Waterproof: |
YES; IP45 |
View Angle: |
92 degree |
Camera lens focus: |
3.6MM |
VSPV912LM Main Unit Features: |
Screen: |
2.5 Inch TFT LCD |
Motion Detection: |
YES; ON/OFF |
Vibration Notice: |
YES |
Power saving mode: |
YES ON/OFF |
Built in MIC: |
YES |
Recording Format: |
AVI |
Recording Resolution: |
720 x 576 (720i)(25FPS), 640 x 480 (30FPS), 320 x 240 (30FPS) |
Time stamp: |
YES |
Record with Audio: |
YES ON/OFF |
Built-in Flash Memory: |
128MB |
Media Support: |
AVI/MP3/WAV |
External Memory: |
Micro-SD card (up to 32GB) |
Flash memory rewrite automatically |
YES;ON/OFF Newest video will recover the oldest once memory full |
Keypad Lock: |
YES; |
Recording while power charging |
YES |
Dimensions: |
120mm x 58mm x 23mm (L x W x D) |
Power Supply: |
Rechargeable Li-ion battery ( Cell phone battery) |
Operating Systems: |
Windows 2000/XP/Vista/Windows7 (32 bit version only) |
Certifications: |
CE,ROHS,FCC ready |
OSD Languages: |
English, Chinese |
Color optional: |
Grey;Orange;Pearl white |

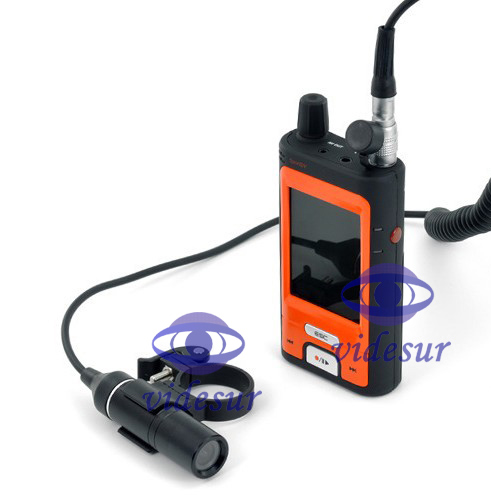

Accessories: |
-Main unit
-CCD camera
-Battery
-Power charger
-6 pin AV input cable
-AV output cable
-USB cable
-Portable bag
-Cycle Mount
-Car use Mount
-Helmet use Mount &belt
-Manual/Arm belt |

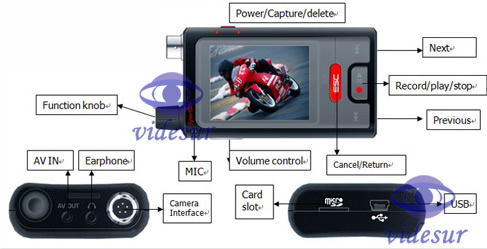

Buttons And Interface:

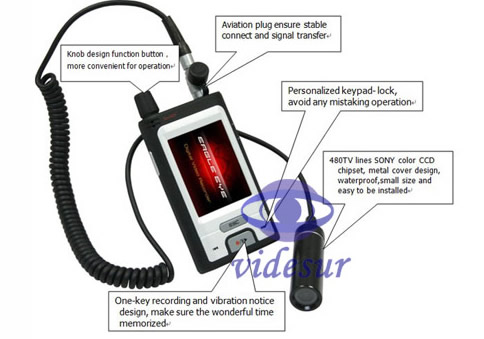

The VSPV912LM got 3 colors(Grey,Orange,Pearl white) of the face cover, that means you could choose the favourite color freely. And the function knob operation is more convenient than most video recorder in the market, and the capture button also designed according to the normal digital camera, if you set the camera on your helmet (same direction with your eyes) , then where/what you want to capture, just watch that and shot. The device also got function of " Keypad lock" , that means no more accidental stop and ensure the video recorded when you set the main unit in your porket.
What is our difference ?
There has many kinds of DVR in the market, wired, wireless or compact, videsur only engaging in improve product degisn and function according to the customers ideas, that ensure what we made will be different and unique.
Widely Use and easy to do more:
You would be know play the videos in the computer via SD media, but it also support display directly on TV via AV output cable, you got another way to enjoy the video in large size monitor. And for some special use, the helmet would be not suitable, we already consider this condition, VSPV912LM got AV input interface and special cable for RCA cameras, the main unit also offer a 5 voltage output to the camera.

Camera Spec:
¡ïInterline CCD image sensor
¡ïImage size: Diagonal 6mm (Type 1/3)
¡ïNumber of effective pixels: 500 (H) ¡Á 582 (V) approx. 290K pixels
¡ïTotal number of pixels: 537 (H) ¡Á 597 (V) approx. 320K pixels
¡ïChip size: 5.59mm (H) ¡Á 4.68mm (V)
¡ïUnit cell size: 9.8¦Ìm (H) ¡Á 6.3¦Ìm (V)
¡ïOptical black: Horizontal (H) direction : Front 7 pixels, rear 30 pixels, Vertical (V) direction : Front 14 pixels, rear 1 pixel
¡ïNumber of dummy bits: Horizontal 16, Vertical 1 (even fields only)
LCD |
2.5inch TFT LCD 960¡Á240 |
Video system |
PAL/NTSC |
Video resolution
Frame rate |
D1720¡Á576@25 fpsD1720¡Á480@30 fps |
VGA640¡Á480@30fpsQVGA320¡Á240@30fps |
Video format |
AVI (MPEG-4) |
Audio format |
MP3 |
Built-in flash memory |
128MB~2G(optional) |
Memory compatibility |
Micro SD Card256MB~16GB |
USB Jack |
High-speed USB 2.0 |
AV In Jack |
3 rings withAviation plug |
AV Output Jack |
3 rings with2.5mm |
Language |
Chinese/English |
Operation Temperature |
-0oC-60oC |
Operation Humidity |
15-85%RH |
Power supply |
DC 5V 1000mAh |
Battery |
Li-ion battery 1300mAh |
OS supported |
2000/XP/Vista 32/windows7(32bit only) |
QualityResolution |
High |
Medium |
Low |
720x576 |
¡Ü45MB |
¡Ü36MB |
¡Ü20MB |
720x480 |
¡Ü43MB |
¡Ü33MB |
¡Ü18MB |
640x480 |
¡Ü39MB |
¡Ü27MB |
¡Ü16MB |
320x240 |
¡Ü12.4MB |
¡Ü9.8MB |
¡Ü8.3MB |

1.Smart Home, Office, Household, Hotel, Safety & Security Center, Warehouse, Home Monitoring, Offices, Restaurants, Parking lots, Warehouses and shop/store security using
2.Police, Cop, Control Centre, Bank, Stock Exchange Centre, Prison
3.Car School Beginner, Car DVR Kit, Bus, Vehicle, Truck, Taxi, Individual Cars
4.Black Box For any military using, Help catch criminals
5.Supermarket, Entertainment Centre, Flat, Garden, Store, Small Super Market
6.Potential Civil Security and Surveillance Market
The camera could be setted at any place by these mounts, vehicle, motor cycle, bicycle, helmet, the wall.etc, The DVR will act different role base on these unique mounts.

|
