four channel wireless receiver

VSWR246

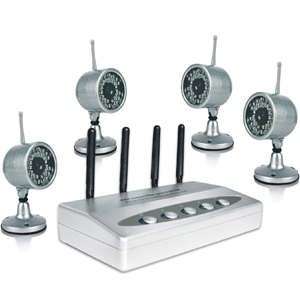

VSWR246 2.4Ghz Wireless System Kit

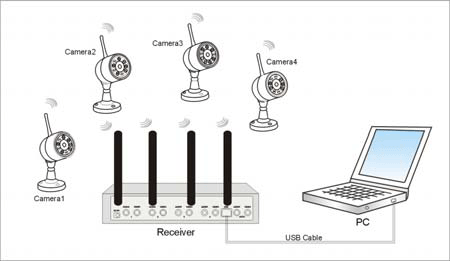

4-channel real time receiving, quad picture, recording to pc, Internet view, motion detectionŁ¬remote control.

VSWR24R User Manual

four channel wireless receiver

ˇˇ

Features:

VSWR246 2.4Ghz Wireless System Kit

ˇńSchedule record mode
ˇńMotion detection mode
ˇńSensor alarm record mode
ˇńRecycling record mode
ˇńCamera works with wire and wireless
ˇńP.T.Z control function
ˇńUsers management
ˇńMulti-channel display
ˇńSupport 320x240/640x480 (NTSC), 352x288/704x576(PAL) standard resolutions
ˇńImage color adjustable for each channel, including contrast, lightness, hue and saturation
ˇńMPEG4 compression format, greatly reduce HDD usage
ˇńPowerful video playing back functions, including playing back, pause, stop, fast-forward, single-frame play and image capture
ˇńSupport advanced search mode. Users can search by date/time, camera, record mode, and random combination of the three methods
ˇńSupport recorded files backup, delete by date/time, camera
ˇńConvenient to extend system functions by software upgrade
ˇńCPU and storage resources saving by advanced technology
ˇńRemote Surveillance and P.T.Z control through LAN, Intranet, and Internet
ˇńSupport alarm pre-record
ˇńSupport buzzer, email alarm out
ˇńCan greatly decrease fragmented files while using NTFS partition
ˇńUser-friendly graphical user interface

Specificaition:

Item

Value

  Transmission Frequency

  ISM 2,400 MHz~2,483 MHz 4CH

  Modulation Mode

  FM

 USB

  2.0

  Operating Temperature

  0ˇć~ +50ˇć / +32¨H~ +122¨H

  Storage Temperature

  -20ˇć ~ +60ˇć / -4¨H ~ +140¨H

  Operating Humidity

  85%RH

  CAMERA

  TV System

  PAL

  NTSC

  Validity Pixel

  628(H) x 582(V)

  510(H) x 492(V)

  Image Device

  1/3" OmnVision CMOS

  Horizontal Definition

  380TV Line

  Angular Field of View

  45ˇă (f=6mm)

  Minimum Illumination

  0 Lux

  Scanning Frequency(H)

  15.625KHz

  15.734KHz

  Scanning Frequency(V)

  50Hz

  60Hz

  Power Adapter

  DC 12V/500mA

  Dimension

 ˇé57x68mm

  Weight

  180g

  RECEIVER

  Receiving Sensitivity

 -85dBm

  Video Output

  75¦¸/1Vp-p

  Audio Output

 10K¦¸/500mVp-p

  Power Adapter

Input AC PowerŁ¬FrequencyŁş50/60Hz VoltageŁş100~240VŁ¬Output DC PowerŁş5V/1.5A

  Outline Size

  205 x 120 x 43mm

  Weight

  520g

 Validity Distance

 150m(Open area)

Video System

 PAL/NTSC/SECAM Compatible

 Power Consumption

 ŁĽ8W
