VSWR247
VSWR247 Mini USB Digital Wireless Network System Kit
Mini USB Digital Receiver, Digital, four Channel Quad picture, Audio& Video Recording, Motion detection, Image capturing, Support Network Remote monitoring on PC through third-party software, USB2.0...
| ¡¡ |
Features:
VSWR247 Wireless Digital Receiver System Kit
Receiver Specifications
Model:VSWR247 Receiver
Validity Pixel(dot):480(W) x 240(H)
Receiving Signal: Video¡¢Audio
Receiving Frequency: 2.400GHz¡«2.483GHz
Sensitivity: ¡Ü-85dBm
Modulation Model: GFSK
Power: Supplied by Computer USB
Power Consumption: ¡Ü1W
Working Temperature: -10~50¡æ
Operation System: Windows XP /Vista/Win7
Size: 88X35X15mm
Weight: 35.2g(including antenna£©
Camera Specifications
Model: VSWR247 Camera
Image Device: 1/4¡åCMOS
Valid Pixe: PAL: 628X582 NTSC: 510X492
Scanning Frequency£ºPAL/CCIR: 50Hz NTSC/EIA: 60Hz
Minimum Illumination£º3Lux/F1.2
Transmission Power£º17dBm
Transmission Frequency£º2.400GHz¡«2.483GHz
Transmission Signal£ºVideo¡¢Audio
Transmission Distance in Open Area£º200M
Power£ºDC5V/800mA
Power Consumption£º¡Ü1W
Working Temperature: -20~60¡æ
Size: 92x50x25mm
Weight: 61.8g(including antenna£©

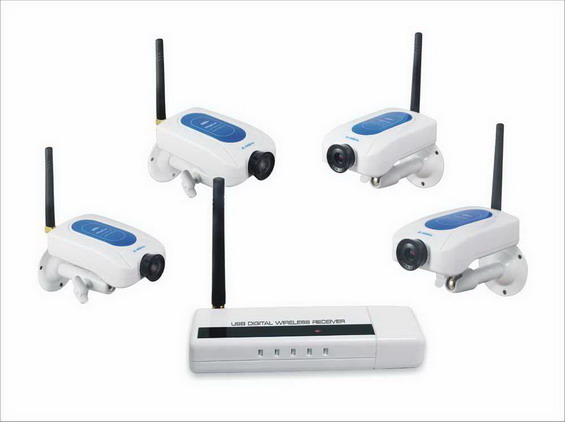

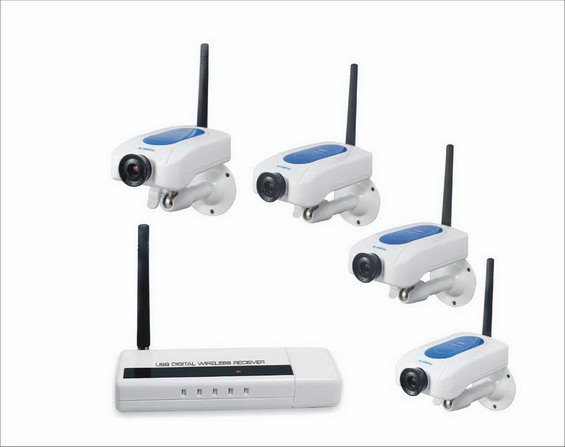

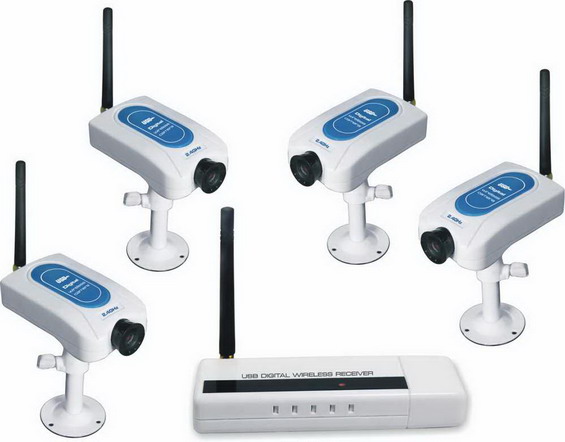

It includes 1pc receiver(VSWR247 Receiver), 4 pcs wireless cameras(VSWR247 Camera), 4 Brackets, 5pcs Antennas, 4pcs power adapters, 1pc user manual, and 1pc CD driver.
|
|
¡¡ |
