VSWR24C4

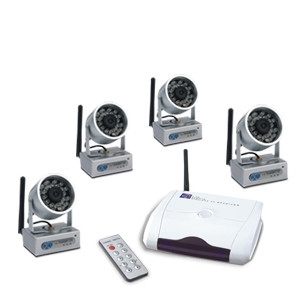

VSWR24C4 2.4Ghz Wireless System Kit
4 Wireless Camera and 1 Wireless Receiver
Longer transmission distance 300-500m and High Power Camera
| ¡¡ |
Features:
VSWR24C4 2.4Ghz Wireless System Kit
¡ù380 TVL of horizontal definition.
¡ùCamera with 30pcs of ¦Õ5 LED infrared lamps and 15m night vision distance.
¡ùReceiver with 4 channels exchangeable by auto & manually.
¡ù300-500m transmission distance without block.
¡ùAudio monitoring with microphone in camera.
Specificaition:
Item |
Value |
Transmission Frequency |
ISM 2,400 MHz~2,483 MHz 4CH |
Modulation Mode |
FM |
Unobstructed EffectiveRange |
300-500m(Without Block) |
Operating Temperature |
0¡æ~ +50¡æ / +32¨H~ +122¨H |
Storage Temperature |
-20¡æ ~ +60¡æ / -4¨H ~ +140¨H |
Operating Humidity |
85%RH |
CAMERA |
TV System |
PAL |
NTSC |
Validity Pixel |
628(H) x 586(V) |
510(H) x 492(V) |
Image Device |
1/3" OmnVision CMOS |
Horizontal Definition |
380TV Line |
Angular Field of View |
45¡ã (f=6mm) |
Minimum Illumination |
0 Lux |
Scanning Frequency(H) |
15.625KHz |
15.734KHz |
Scanning Frequency(V) |
50Hz |
60Hz |
Power Adapter |
DC 12V/500mA |
Dimension |
68x52x105mm |
Weight |
245g |
RECEIVER |
Receiving Sensitivity |
¡Ü-85dBm |
Video Output |
1Vp-p@75¦¸,S/N>38dB |
Audio Output |
10K¦¸/200mVp-p |
Power Adapter |
DC 12V/500mA |
Dimension |
120x99x30mm |
Weight |
165g |
Antenna |
50ohm SMA |
Intermediate Frequency |
480MHz |
Frequency Stabilization |
¡À 100MHz |
|
|
¡¡ |
